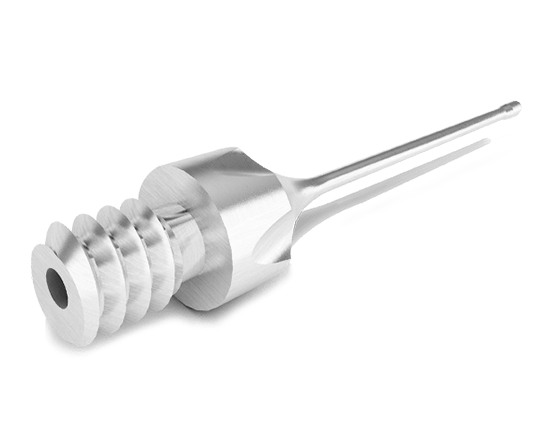

Fine Cannula Parts
- Usage : Ultrasonic Apparatus for Cataract Surgery
- Work size : φ 3.55 × 21.7 mm (φ 0.5 mm penetration)
- Processing : Precision Drilling, Precision Microfabrication
- Manufacturing Details : 0.5 17mm penetration (0.12 mm at its thinnest part)
Hole Diameter and Depth(Aspect ratio)
| Hole diameter | Maximum depth(mm) | Guaranteed accuracy | Processing machinery | L/D | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Φ0.01 | 0.05 | ±0.005 |
Micro hole machine |
5 | ||||||||||
| Φ0.02 | 0.2 | 10 |
||||||||||||
| Φ0.03 | 0.3 | |||||||||||||
| Φ0.04 | 0.4 | |||||||||||||
| Φ0.05 | 0.5 | |||||||||||||
| Φ0.06 | 0.6 | |||||||||||||
| Φ0.07 | 0.7 | |||||||||||||
| Φ0.08 | 0.8 | |||||||||||||
| Φ0.09 | 0.9 | |||||||||||||
| Φ0.10 | 10 | 100 |
||||||||||||
| Φ0.20 | 20 | |||||||||||||
| Φ0.30 | 30 | |||||||||||||
| Φ0.40 | 40 | |||||||||||||
| Φ0.50 | 50 | |||||||||||||
| Φ0.60 | 60 | |||||||||||||
| Φ0.70 | 70 | |||||||||||||
| Φ0.80 | 80 | ±0.005 ±0.05 |
Micro hole machine Gun drilling machine |
|||||||||||
| Φ0.90 | 90 | |||||||||||||
| Φ1.00 | 120 | 120 | ||||||||||||
| Φ2.00 | 250 | 125 | ||||||||||||
| Φ3.00 | 330 | 110 | ||||||||||||
| Φ4.00 | 400 | ±0.05 |
Gun drilling machine |
100 | ||||||||||
| Φ5.00 | 520 | 104 | ||||||||||||
| Φ6.00 | 740 | 123 |
